此类用于定义一个折线View 更多...

#import <BMKPolylineView.h>

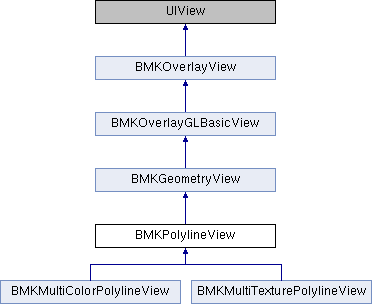

类 BMKPolylineView 继承关系图:

构造函数
(nullable instancetype)	- initWithPolyline:

(BOOL isFocus)	- __deprecated_msg
	是否分段纹理/分段颜色绘制（突出显示），默认YES，YES:使用分段纹理绘制 NO:使用默认的灰色纹理绘制更多...

(NSArray< UIColor * > *colors)	- __deprecated_msg

构造函数继承自 BMKOverlayGLBasicView
(CGPathRef path)	- __deprecated_msg
	path对象更多...

(BOOL lineDash)	- __deprecated_msg
	是否为虚线样式，默认NO 更多...

构造函数继承自 BMKOverlayView
(nullable instancetype)	- initWithOverlay:

(GLuint)	- loadStrokeTextureImage:

(BOOL)	- loadStrokeTextureImages:

(void)	- setOverlayGeometryDelegate:
	设置该overlay的GeometryDelegate 更多...

(CGPoint)	- pointForMapPoint:

(BMKMapPoint)	- mapPointForPoint:

(CGRect)	- rectForMapRect:

(BMKMapRect)	- mapRectForRect:

(BOOL)	- canDrawMapRect:zoomScale:

(void)	- drawMapRect:zoomScale:inContext:

(void)	- setNeedsDisplayInMapRect:

(void)	- renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:

(void)	- renderTexturedLinesWithPoints:pointCount:lineWidth:textureID:looped:

(void)	- renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:lineDashType:

(void)	- renderLinesWithPoints:pointCount:strokeColor:lineWidth:looped:lineDash:

(void)	- renderTexturedLinesWithPartPoints:lineWidth:textureIndexs:isFocus:

(void)	- renderTexturedLinesWithPartPoints:lineWidth:textureIndexs:isFocus:tileTexture:keepScale:

(void)	- renderTexturedLinesWithPoints:pointCount:lineWidth:textureID:strokeColor:looped:tileTexture:keepScale:

(void)	- renderTexturedPolyLineWithPoints:lineWidth:textureID:strokeColor:isFoucs:keepScale:lineJoinType:lineCapType:

(void)	- renderMultiTexturedPolyLineWithPartPoints:lineWidth:textureIndexs:isFoucs:keepScale:lineJoinType:lineCapType:

(void)	- renderDashPolyLineWithPoints:lineWidth:strokeColor:lineDashType:

(void)	- renderMultiDashPolyLineWithPartPoints:lineWidth:textureIndexs:lineDashType:

(void)	- renderRegionWithPoints:pointCount:fillColor:usingTriangleFan:

(void)	- renderATRegionWithPoint:pointCount:fillColor:usingTriangleFan:

(void)	- rendeCircleWithPoints:pointCount:lineWidth:fillColor:strokeColor:

(void)	- rendePolygonWithPoints:pointCount:lineWidth:fillColor:strokeColor:

(void)	- glRender

属性
BMKPolyline *	polyline
	该View对应的折线数据对象更多...

BMKLineJoinType	lineJoinType
	LineJoinType,默认是kBMKLineJoinBevel（不支持虚线）更多...

BMKLineCapType	lineCapType
	LineCapType,默认是kBMKLineCapButt (不支持虚线) 更多...

属性继承自 BMKGeometryView
UIColor *	fillColor

UIColor *	strokeColor

CGFloat	lineWidth
	画笔宽度，默认为0 更多...

BMKLineDashType	lineDashType
	虚线类型, since 5.0.0，默认kBMKLineDashTypeNone (仅支持颜色虚线) 更多...

属性继承自 BMKOverlayGLBasicView
UIImage *	textureImage

BOOL	keepScale
	纹理图片是否缩放，默认NO 更多...

属性继承自 BMKOverlayView
id< BMKOverlay >	overlay
	关联的overlay对象更多...

GLuint	strokeTextureID
	关联的纹理对象ID 更多...

额外继承的成员函数
Protected 属性继承自 BMKOverlayView
package id< BMKOverlay >	_overlay

BMKMapRect	_boundingMapRect

CGAffineTransform	_mapTransform

id	_geometryDelegate

id	_canDrawCache

BOOL	keepScale

CFTimeInterval	_lastTile

CFRunLoopTimerRef	_scheduledScaleTimer

struct {
unsigned int keepAlive:1

unsigned int levelCrossFade:1

unsigned int drawingDisabled:1

unsigned int usesTiledLayer:1

}	_flags

详细描述

此类用于定义一个折线View

函数文档

◆ __deprecated_msg [1/2]

- (BOOL isFocus) __deprecated_msg ("已废弃since 5.0.0")

是否分段纹理/分段颜色绘制（突出显示），默认YES，YES:使用分段纹理绘制 NO:使用默认的灰色纹理绘制

实现了 BMKOverlayGLBasicView.

◆ __deprecated_msg [2/2]

- (NSArray<UIColor > colors) __deprecated_msg	("已废弃since 6.5.)	0
	(请使用BMKMultiColorPolylineView中strokeColors")

使用分段颜色绘制时，必须设置（内容必须为UIColor）注：请使用 - (UIColor *)initWithRed:(CGFloat)red green:(CGFloat)green blue:(CGFloat)blue alpha:(CGFloat)alpha; 初始化UIColor。使用[UIColor ***Color]初始化时，个别case转换成RGB后会有问题

◆ initWithPolyline:

- (nullable instancetype) initWithPolyline: (BMKPolyline *) polyline

根据指定的折线生成一个折线View

参数

polyline 指定的折线数据对象

返回: 新生成的折线View

属性说明

◆ lineCapType

- (BMKLineCapType) lineCapType

readwritenonatomicassign

LineCapType,默认是kBMKLineCapButt (不支持虚线)

◆ lineJoinType

- (BMKLineJoinType) lineJoinType

readwritenonatomicassign

LineJoinType,默认是kBMKLineJoinBevel（不支持虚线）

◆ polyline

- (BMKPolyline*) polyline

readnonatomicassign

该View对应的折线数据对象

该类的文档由以下文件生成:

BaiduMapAPI_Map.framework/Headers/BMKPolylineView.h
